Description

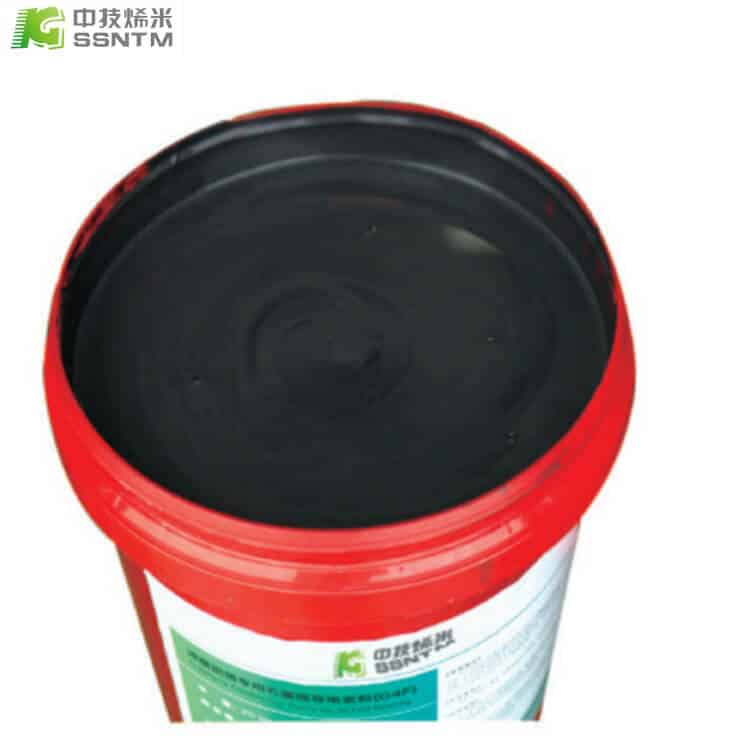

The product is designed as a special conductive coating for graphene-coated aluminum fail which is applicable for Li-ion batteries and supercapacitors. It is an aqueous slurry with good liquidity and low solid content. which can be uniformly coated on the surface of aluminum foil current collectors by using gravure coating technology. Due to the excellent electrical conductivity and flexible sheet structure of graphene, G4F forms an ultra-thin layer on the surface of current collector. which can significantly reduce the interface resistance and improve the adhesion between active material and current collector. Its comprehensive performance is much better than those of other conductive slurries based on traditional carbon materials.
Product Features:
Environment-friendly, low viscosity, good liquidity and good coating property. Forming ultra-thin (<1um) coating laver on the surface of aluminum foil current collector.
Reducing the interface resistance to improve rate capability and cycle life of Li-ion batteries and super-capacitors.
Improving the adhesion between active materials and current collector and reducing the corrosion of current collector.
Enhancing the safety of batteries by reducing polarization and alleviating the heating-up during charging
Application arranges:
Li-ion batteries Supercapacitor
Specifications & parameters
Appearance ：Dark gray slurry
Solid content/wt.% ：3
Viscosity/cps ：100~200
Coating conductivity on PET/S cm. ：6~7
PH ：7~8
